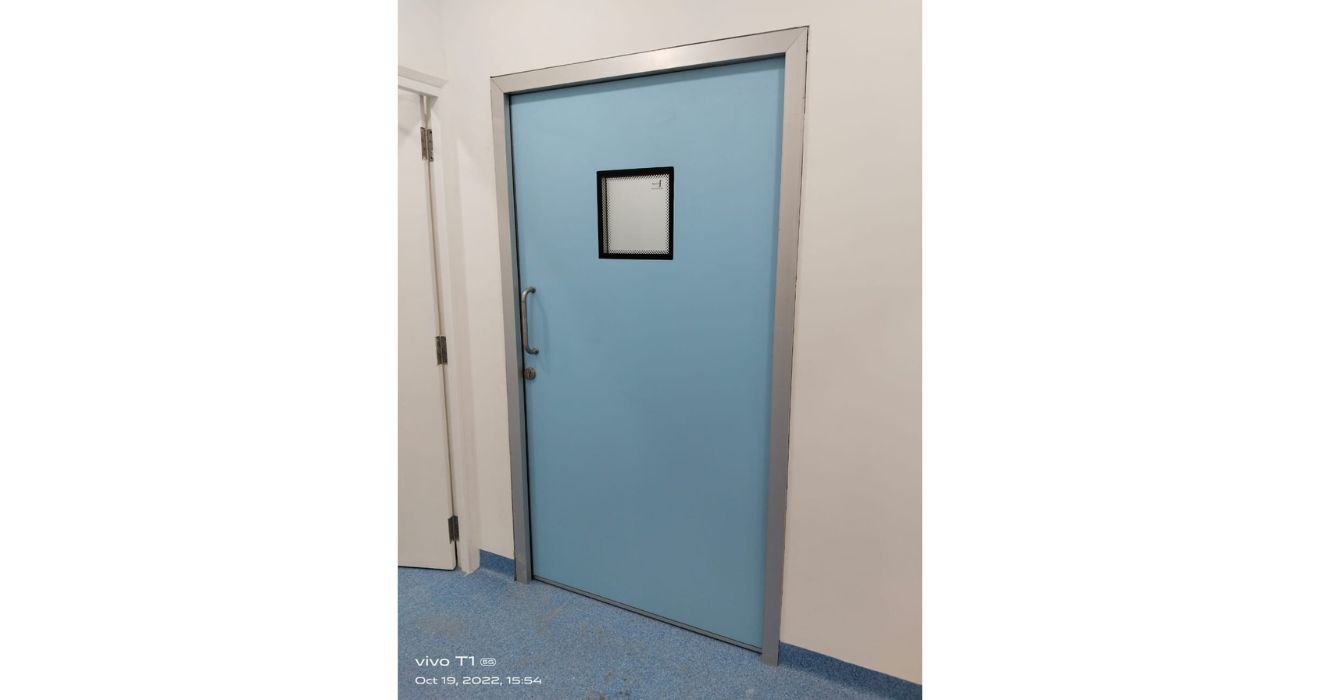

Anti-Raditation Hinge Door
Anti-radiation hinge doors are designed with lead shielding inside to protect hospital staff and patients from unnecessary exposure to harmful X-Rays outside and nearby areas of rooms like X-Ray, Cath Lab, Radiology, Mammographyetc.
- X-Ray Rooms
- Fluoroscopy Rooms
- Radio Therapy Rooms
- Cath Labs
- Mammography Rooms
- Rooms with Radiation Equipments Inside
Anti-Radiation hinge doors are basically semi hermetically sealed doors with 2mm thick lead inside. These doors are specially designed for room with radiation shielding requirements.
Anti-radiation hinge doors have 2mm thickness of lead lining inside that comply with AERB (Atomic Energy Regulatory Board) requirements for the X-Ray shielding doors. 3-sided aluminium wall frame also come with 2mm lead inlay.
44 mm thick door core consists of 4 mm thick high pressure compact laminate both sides, 2mm thick lead lining and 34mm thick high pressure injected polyurethane. The door also provides noise insulation up to 28 db.
Apart from 3 tier EPDM sealing gasket for wall frames, a special drop seal is fixed on the lower part of the door blade to ensure perfect sealing.
Wall frame are produced form 3mm thick aluminium with 3 mm MS C-channel to reinforce the door life hinges. The wall frame installed on brick/block wall or plastered openings with the help of anchor fasteners. Door frames may supply to knockdown form with joints for bolted assembly at site.
Stainless steel ball bearing butt hinges fixed to the door frame and door leaf for noiseless and friction free movement for years after year. Mortise latch and concealed lever action flush bolt is provided to the leading stile edge.

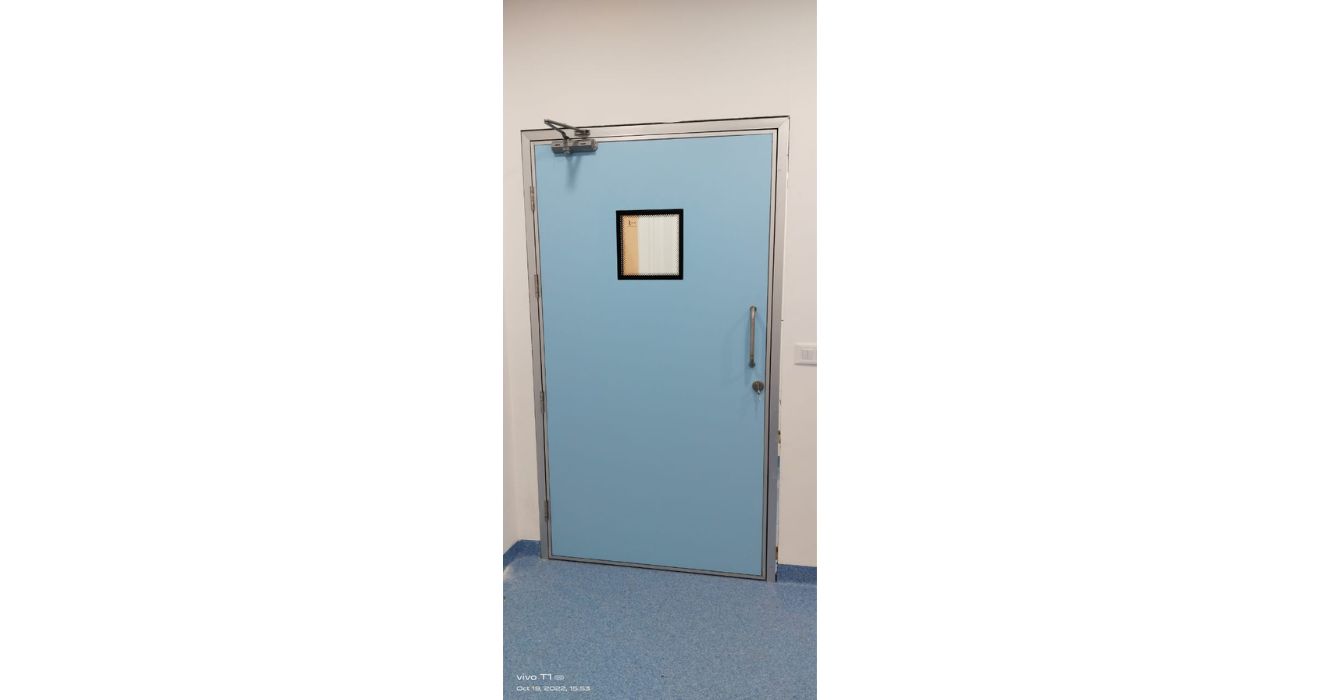

As an option 10 mm thick lead glass having minimum lead capacity equivalent to 2.2 mmpb with clear view of 300x300, fitted in 2 mm thick brush finished stainless steel frame on both sides of the door, can be provided to see inside the radiation room.
Many other useful options are provided with the door like door closer, smoke seal for air tightness, drop seal at the bottom of the door, louvers in the door leaf, any size of vision window, kick plate etc.
Approach and Benefit.
Sed ut persp iciatis unde omnis iste natus error sit volu ptatem accus antium dolore melau antium totam remono aperiam eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. Nenimn ipsam voluptatem quia voluptas sit aspern atur aut odit aut fugit sed quia consequuntur magni dolores eos qeuit ratione and we have many other medical service.
Lead-lined doors, like our Anti-Radiation Hinge Doors, protect staff and patients from harmful radiation exposure. The 2mm lead shielding complies with AERB standards, making it essential for rooms with radiation equipment.
These doors are installed in rooms with radiation equipment, such as X-ray rooms, radiotherapy rooms, Cath Labs, and fluoroscopy rooms, where radiation shielding is required.
Yes, we offer a variety of customization options, including lead glass vision windows, door closers, smoke seals, and kick plates, allowing you to tailor the door to fit your facility's specific needs.
The semi-hermetic seal ensures minimal air leakage, making it ideal for environments where air pressure control is crucial, such as clean rooms and sterile areas in hospitals.
The doors are fitted with stainless steel ball bearing butt hinges that provide smooth, friction-free, and noiseless operation, ensuring long-lasting performance even in high-traffic environments.
