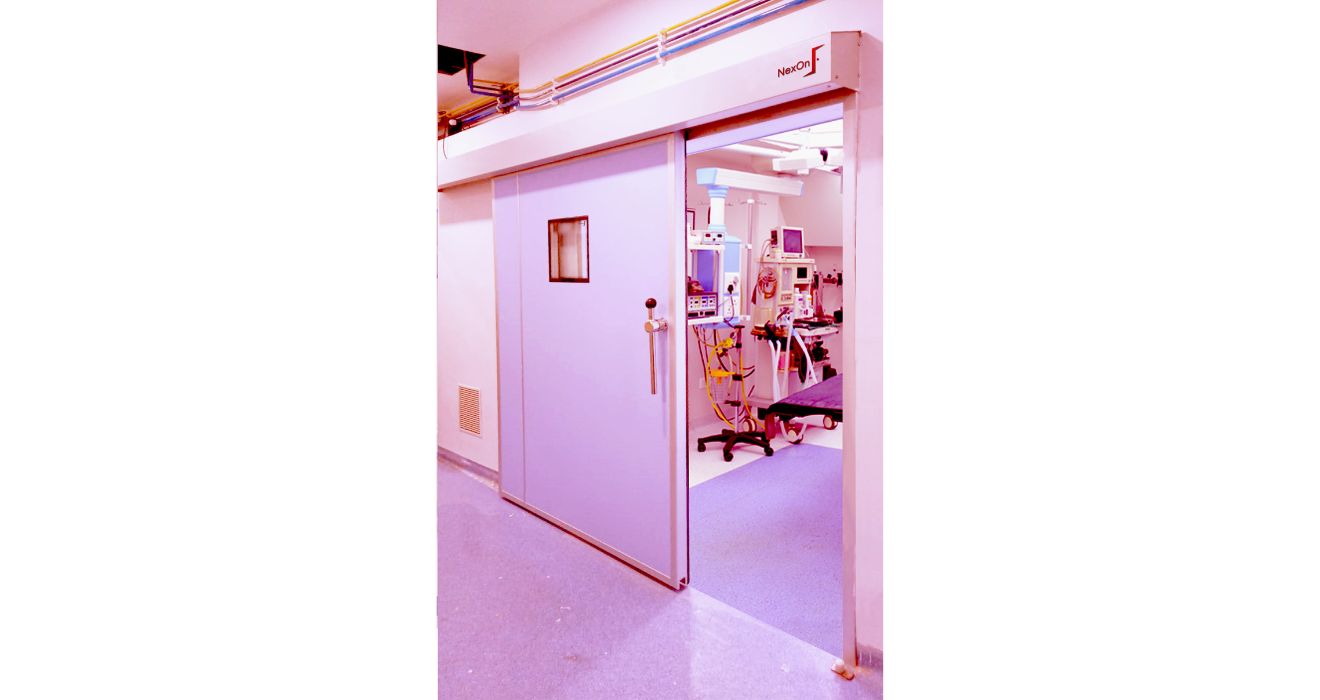

Hermetically Sealed Sliding Door
Clean air is very important for good health. Hermetically sealed sliding doors are specially designed to control the clean air pressure in the room which is of extremely important ar a hospital. These doors ca be installed inside / outside of the room with mannual and automatic operation.
- Operation Theaters
- Intensice Care Unit (ICU)
- Quarantine Rooms
- Sterline Rooms
- O.T. Lobby
- Laboratories
The door is developed specially for operation theaters and sterile area. Normally an operation theater runs on over pressure. At this pressure any leakage losses will still not be measurable due to the hermetic sealing property of door.
Core of the door blade is 60 mm thick and has 4 mm thick without joint premium grade High Pressure Laminates on both side of 52mm thick injected polyurethane. This door core is framed with extruded aluminium profiles finished with natural anodizing. Smart radius and curves on the edges the door cleaning very easy.

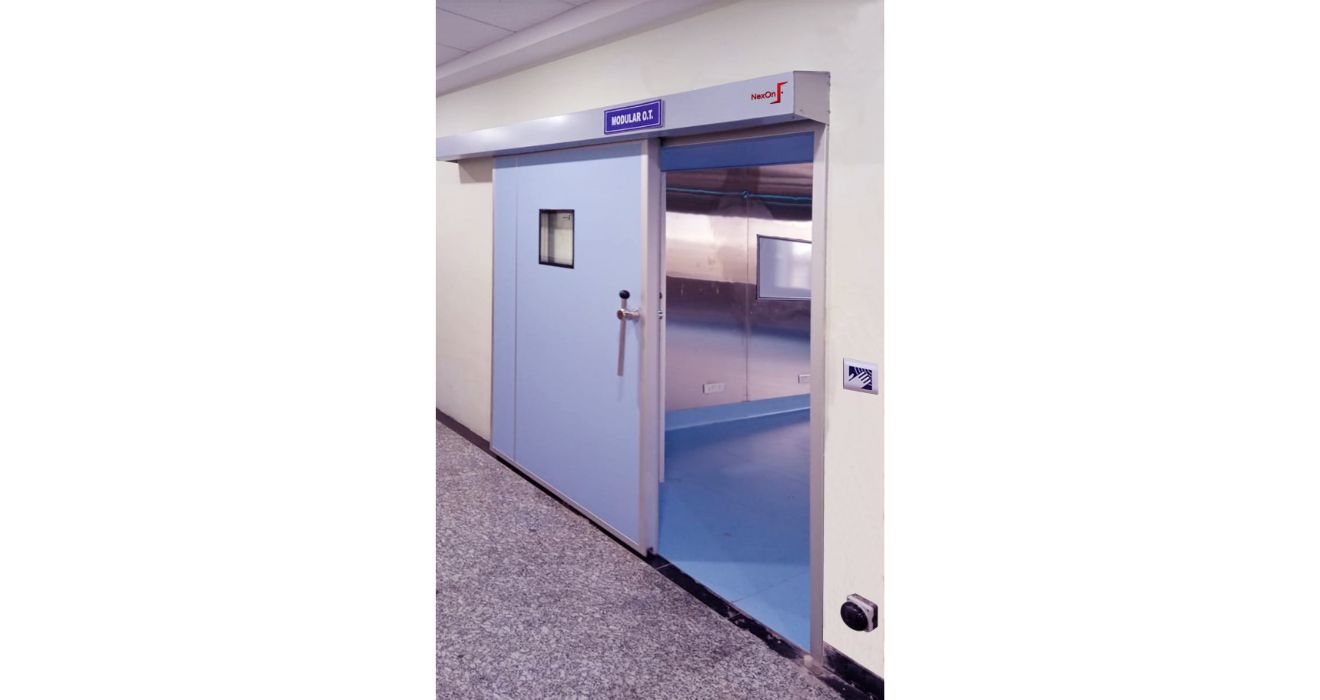

Specially designed lever opener made of solid stainless steel is there to ensure effortless opening and closing of the door. Automatic door is operated through CE marked European automation, specially designed for Nexon hermetic sliding doors.
The door blade comes with a border printed toughed glass sandwich vision window, flushed with both side core surfaces of the door.
Heavy duty track is provided as single length aluminium extruded profile, which allows the door to slide while opening and closing. The door goes down vertically towards the floor and in horizontally towards wall frame while closing simultaneously at an angle of 45° by using the weight of the door to make a perfect hermetic sealing.
High quality electroplated wheel chairs combined with self-lubricating rollers fitted on double ball bearings ensure noiseless and friction free working for years after years.
Special Design of 3 tier EPDM sealing gasket to seal the aluminium wall frame and 2 tier bottom gaskets fixed on the lower part of door blade to ensure perfect hermetic sealing with finish floor.
There are many options, which are available with this door i.e., Door's skin of 1.0mm thick SS-304 can be provided either/both side of door core, Door lock, bigger size vision window, D-handle with flush grip for full passage opening, kick plate and SS-304 guard columns etc.
Approach and Benefit.
Sed ut persp iciatis unde omnis iste natus error sit volu ptatem accus antium dolore melau antium totam remono aperiam eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. Nenimn ipsam voluptatem quia voluptas sit aspern atur aut odit aut fugit sed quia consequuntur magni dolores eos qeuit ratione and we have many other medical service.
Hermetically sealed doors are designed to maintain air pressure and prevent contamination, which is crucial in areas like operation theaters, ICUs, and quarantine rooms. They ensure that air stays clean and sterile by minimizing air leaks.
Yes, our hermetically sealed sliding doors can be installed in both new and existing hospital rooms. We offer both manual and automatic options to fit various requirements.
Absolutely. We offer several customization options including door skin materials, vision window sizes, handle designs, and additional protective features such as kick plates and guard columns.
Our doors utilize a 3-tier EPDM gasket and a 2-tier bottom gasket, combined with the door’s ability to close at a 45° angle. This creates a perfect seal, ensuring no air leakage and maintaining the room’s air pressure.
The automatic doors use CE-marked European automation, known for its durability and reliability. We recommend regular maintenance checks, but the doors are designed for long-lasting, friction-free operation with minimal upkeep.
Cancer Specilist
Sed ut persp iciatis unde omnis iste natus error sit volu ptatem accus antium dolore melau antium totam remono aperiam eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. Nenimn ipsam voluptatem quia voluptas sit aspern atur aut odit aut fugit sed quia.
Feel Free to Reach Out to Us
Have any questions or need more information about our services? We’re here to help! Whether you’re looking for custom door solutions or need expert advice, our team is ready to assist you.
At NexOn Door Solutions, we pride ourselves on delivering personalized service and support to meet your unique needs. Reach out today, and let’s discuss how we can help enhance the safety, efficiency, and functionality of your healthcare facility.
