Semi-Hermetic Hinge Door
These doors are specially designed for clean rooms in hospitals to ensure sterility and to maintain correct air pressure in the room. These doors come with single and double leaf with various colour options to match the interior / exterior wall paint.
- Intensive Care Units (ICU)
- Doctor Rooms
- Wards
- Patients Therapy Rooms
- Clean Rooms
- Sterile Rooms
- Changing Rooms
- Lab

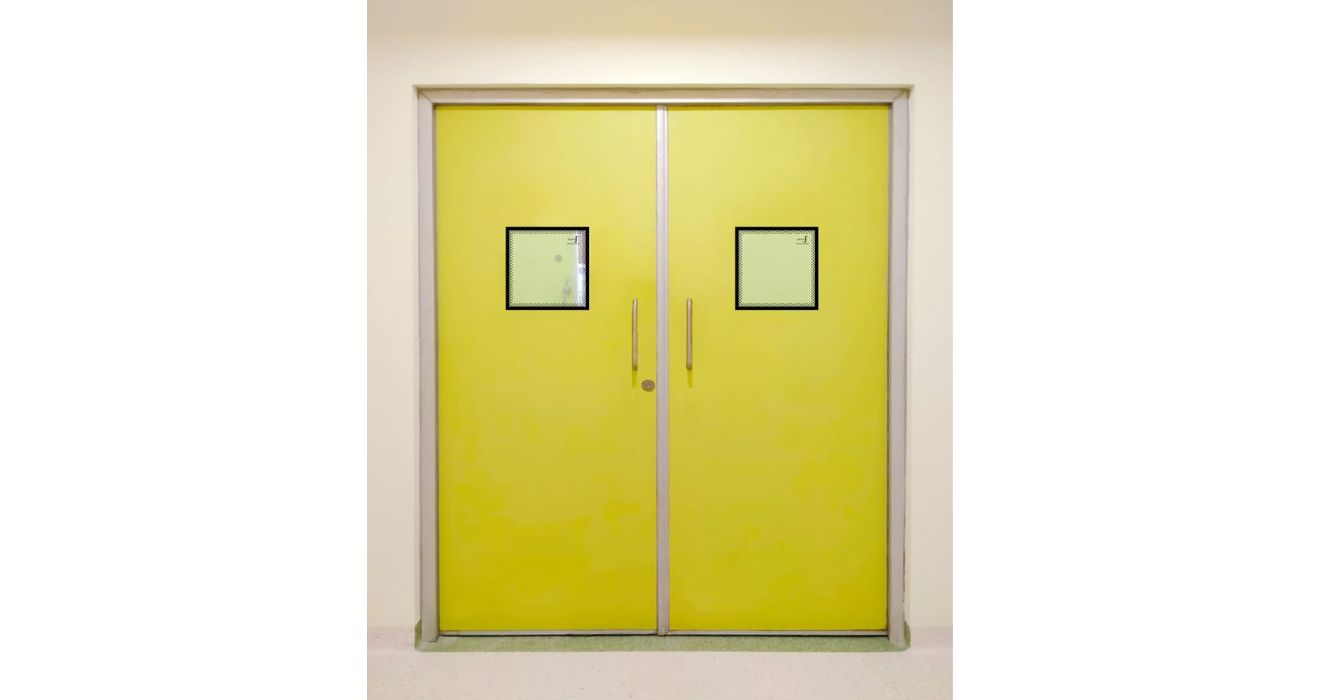

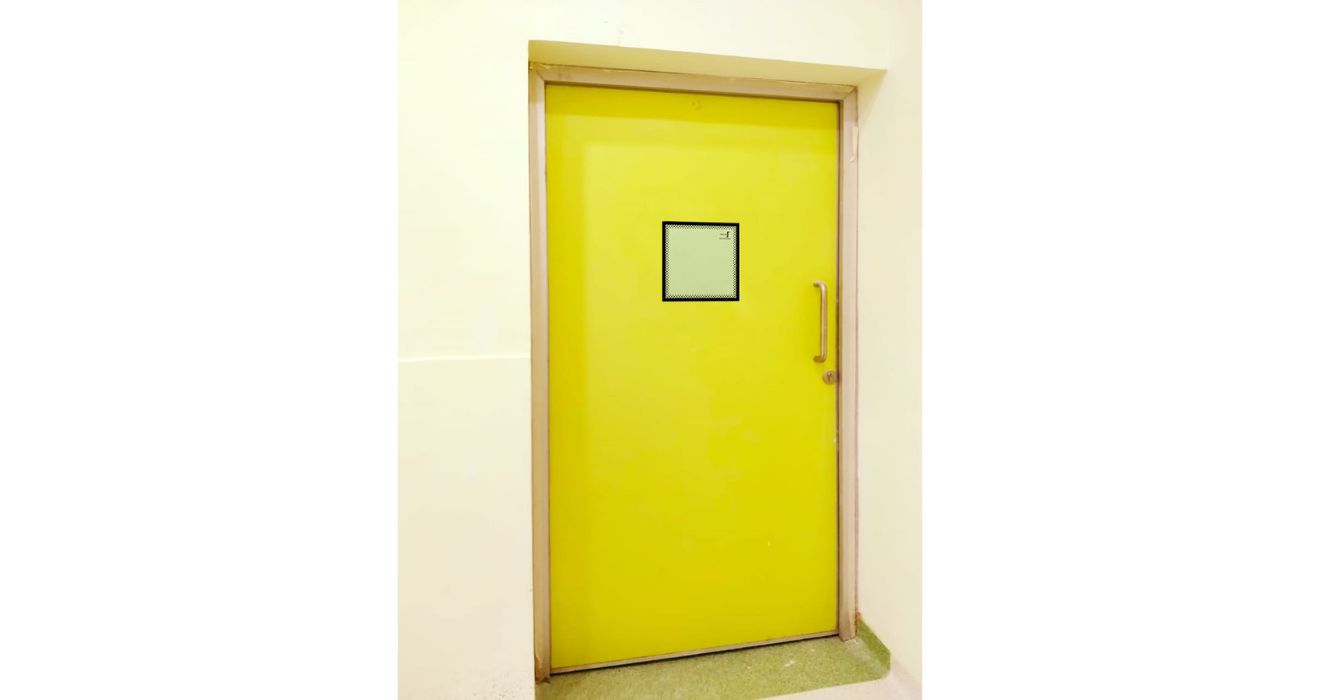

It is also known as clean room flushed hinged doors. The flush construction prevents bacterial growth hence ensures perfect sterility in the room. It comes in single and double leaf doors depending on the width of clear passage required. These doors come in standard sizes, but customization is also available as per special requirements and site conditions.
Door leaf are made from 04 mm thick high pressure compact laminates sheets with sude finish formed to provide a 44 mm thick fully flush. Polyurethane is used as IN-FILL to give the required rigidity and effective acoustic insulation.
Wall frame are produced form 3mm thick aluminium with 3 mm MS C-channel to reinforce the door life hinges. The wall frame installed on brick/block wall or plastered openings with the help of anchor fasteners. Door frames may supply to knockdown form with joints for bolted assembly at site.
Border printing vision window of 44mm thick toughened clear glass panel can be provided in any rectangular or 300x300 mm size of the door leaf. These window glasses will be flushed with the door leaf.
Stainless steel ball bearing butt hinges fixed to the door frame and door leaf for noiseless and friction free movement for years after year. Mortise latch and concealed lever action flush bolt is provided to the leading stile edge.
Many other useful options are provided with the door like door closer, smoke seal for air tightness, drop seal at the bottom of the door, louvers in the door leaf, any size of vision window, kick plate etc.
Approach and Benefit.
Sed ut persp iciatis unde omnis iste natus error sit volu ptatem accus antium dolore melau antium totam remono aperiam eaque ipsa quae ab illo inventore veritatis et quasi architecto beatae vitae dicta sunt explicabo. Nenimn ipsam voluptatem quia voluptas sit aspern atur aut odit aut fugit sed quia consequuntur magni dolores eos qeuit ratione and we have many other medical service.
The term "semi-hermetic" refers to the door's ability to control air pressure and prevent contamination in sterile environments. Although not fully airtight like hermetically sealed doors, these doors still provide excellent sealing capabilities suitable for clean rooms, ICUs, and other sterile areas.
Yes, we offer various customization options, including color choices, window sizes, kick plates, and additional features like smoke seals and louvers to meet specific requirements.
The door leaf is made from 4mm thick high-pressure compact laminate with a polyurethane infill for added strength and insulation. The frame is constructed from 3mm thick aluminum, reinforced with MS C-channel for durability.
The wall frame is installed using anchor fasteners and can be fixed on brick or block walls. For ease of transport and installation, the door frame is available in a knockdown form with joints for bolted assembly on-site.
We offer a range of optional features, including door closers, drop seals, smoke seals, louvers, and custom vision windows, allowing you to tailor the door to your facility’s specific needs.
